Reliability

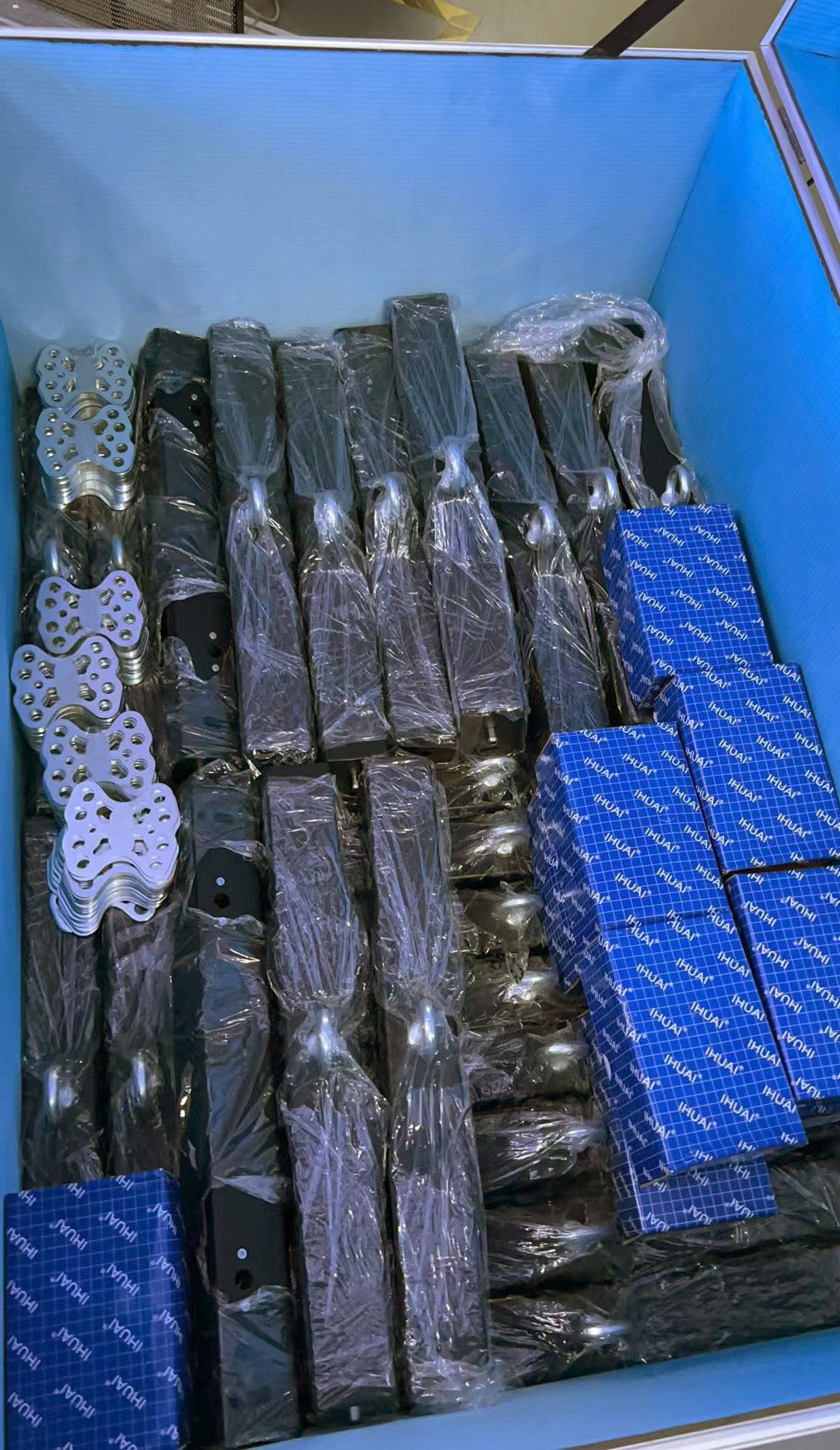

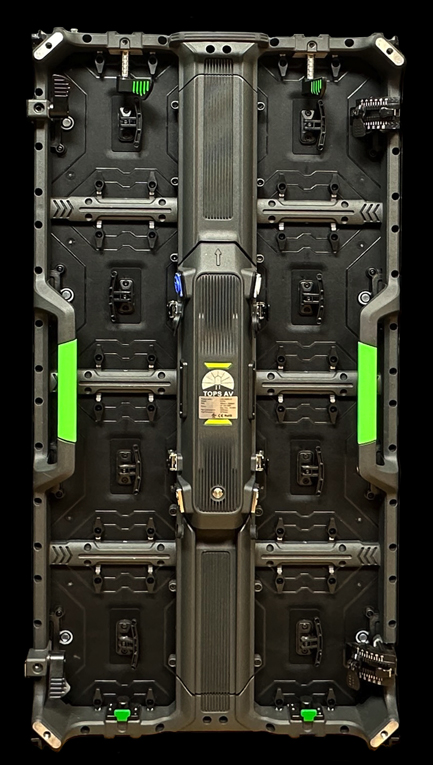

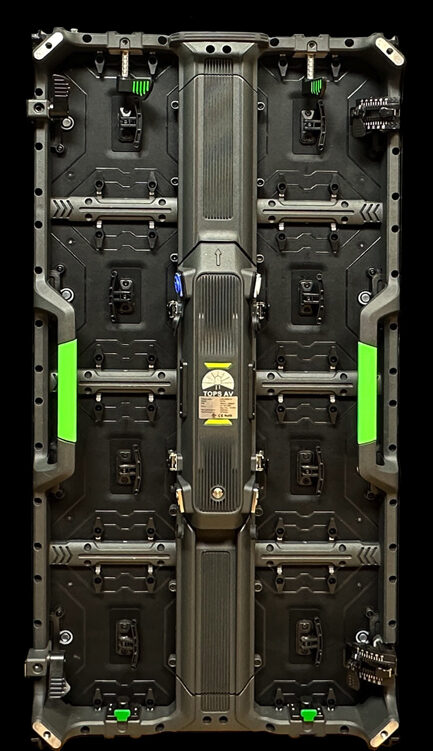

Proprietary parts lead to finite product life and repair difficulties. By using many off the shelf parts, the Miltimore’s new video wall makes maintenance and any repairs are easy to do. The modular design means that each panel has its own power supply, processor and interchangeable panels. This means that extra panels purchased at time of initial wall purchase can serve as a parts warehouse. Y using ULC components, and by using a beefy power supply, the panels can be reliably run 24 hours a day. Each panel also has integrated corner protection.
Outdoor Rated
The Miltimores have made their LED walls IP65 rated. Ip65 can resist jetted water and dust making this wall ideal for outdoor rental use.
Ip65 can also be used indoors or in rental environments that may have higher humidity or dust.
Picture Quality
For a rental screen pixel pitch is very important.

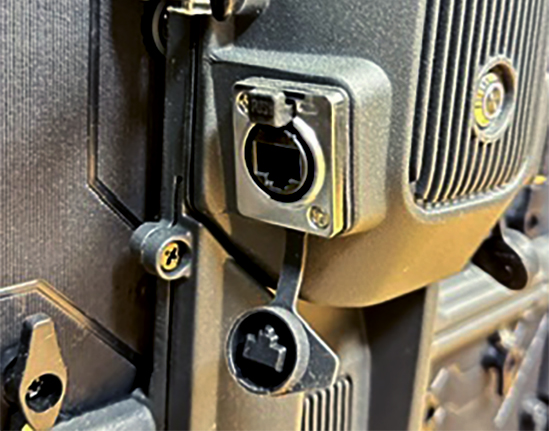

A balance of robustness and tight pixel pitch is very important. Throughout our testing, we have found the ideal pixel pitch to be 2.97mm. Any finer, the individual panels are very fragile and any coarser, the viewing distance must be further back. The TOPS AV 2.97p IP panels have a resolution of 168×336 or 56,488 pixels per panel. This is an important number to know as each network cable can accommodate 650,000 pixels. Otherwords you can link up to 11 panels before you run out of the data stream. Each controller has 4 650,000pixel data streams for a total of 2.6million pixels!
TOPS AV panels have an extra black mask to increase the contrast and dynamic range of the screen.
Effective viewing distance is 7.5’ away and the wall can be built into any size. Many of our pictures and demos are 3mx15m.
A 3mx 15m display is a 5k display.
Once you see the TOPS AV 2.97p IP, wall projectors won’t cut it.
Ease of Setup

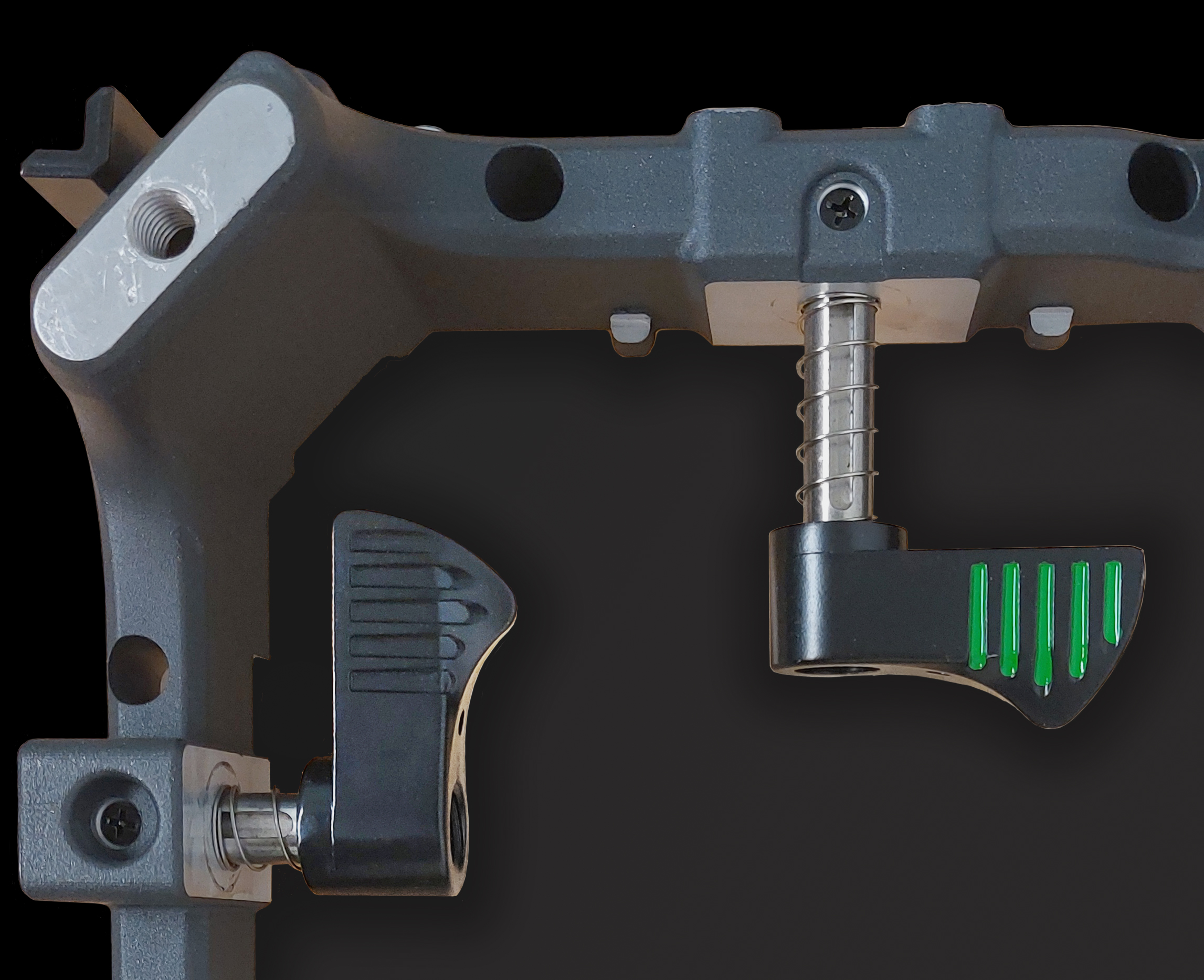

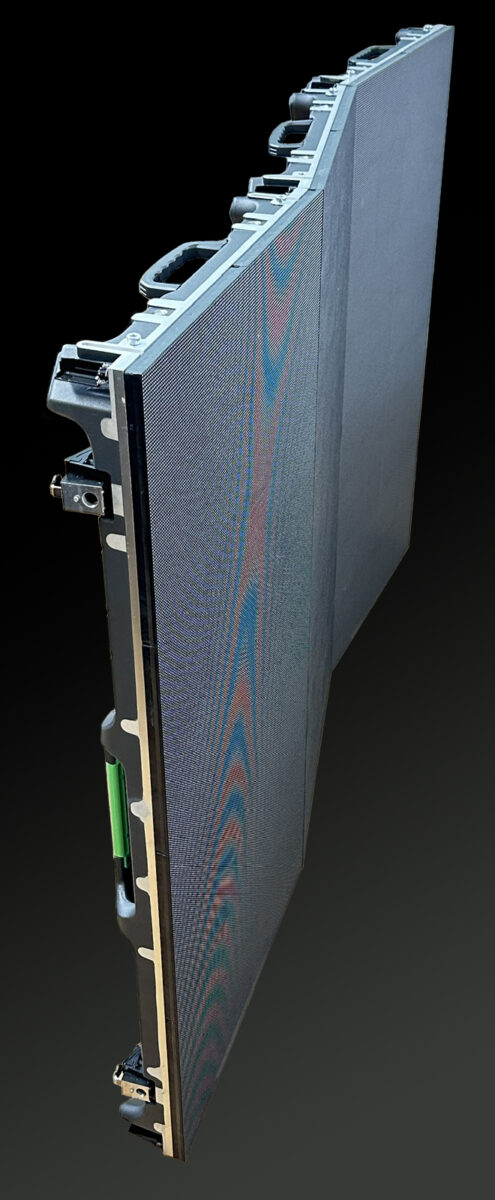

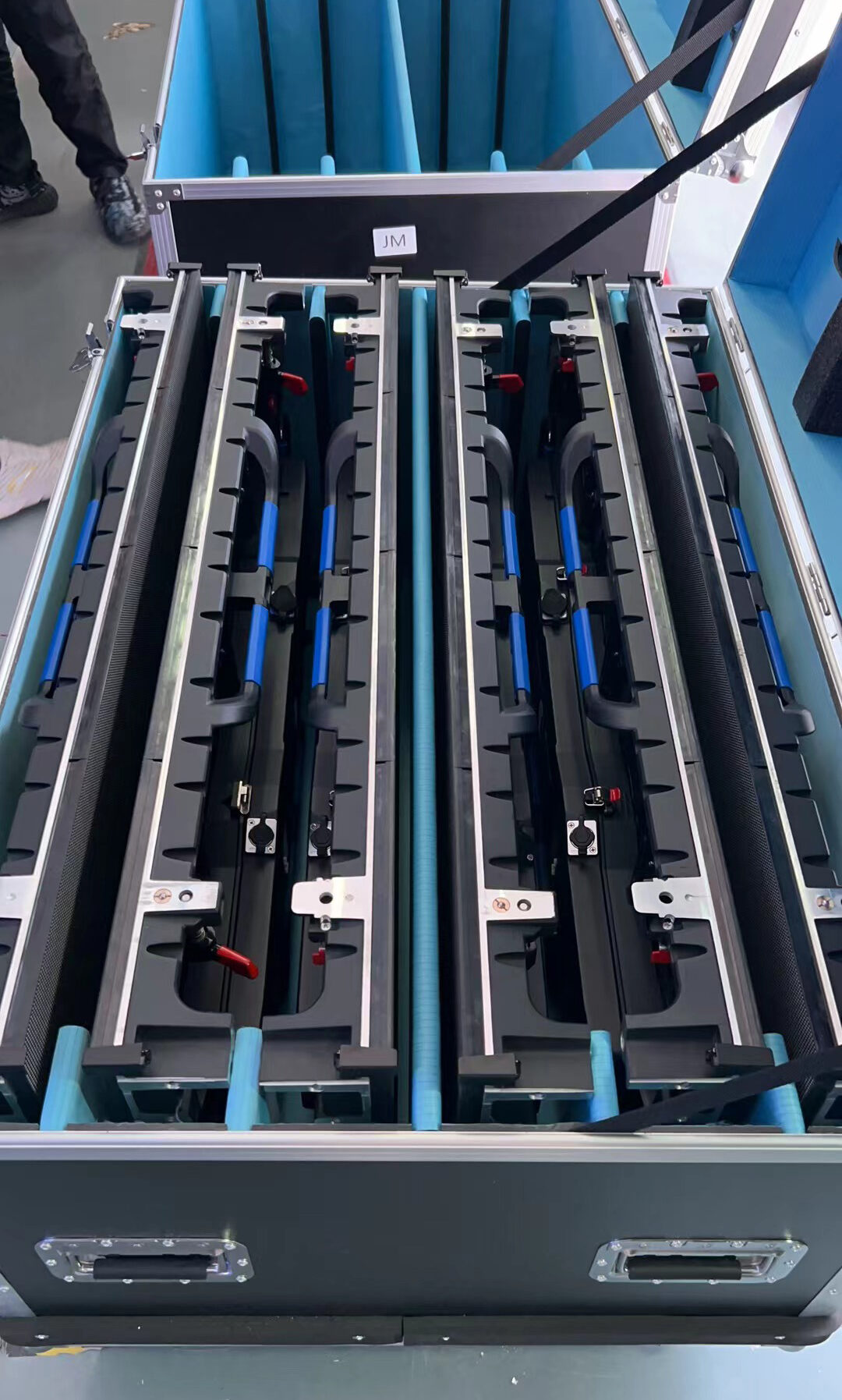

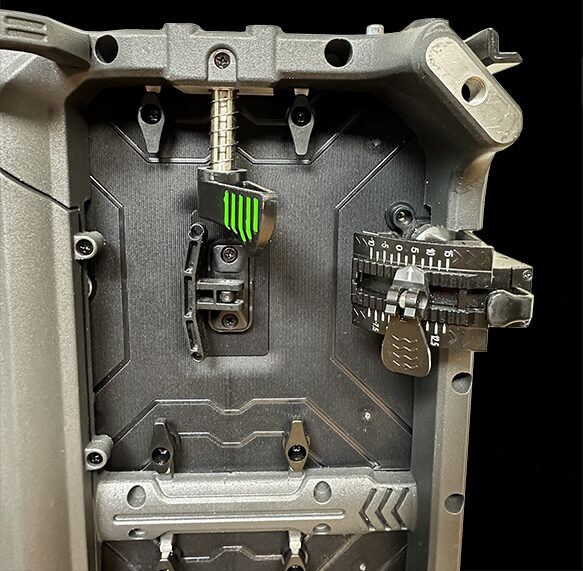

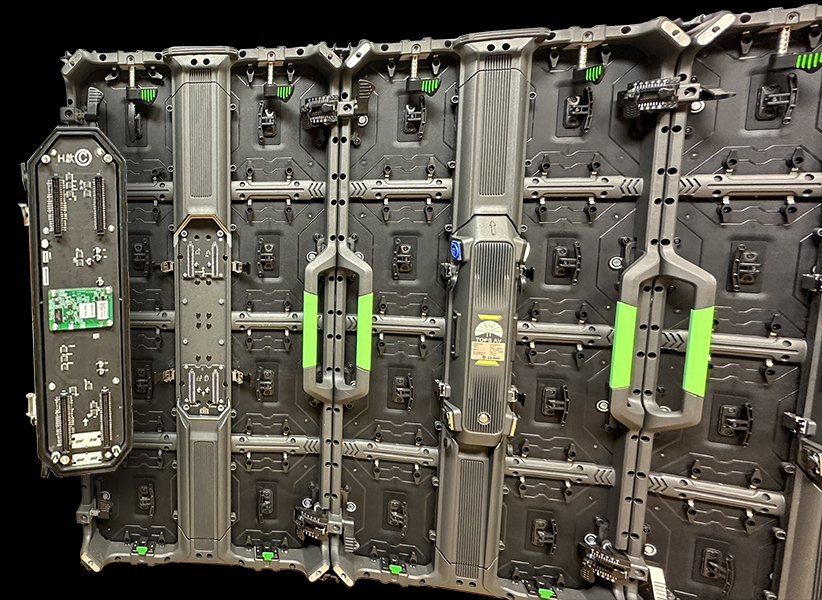

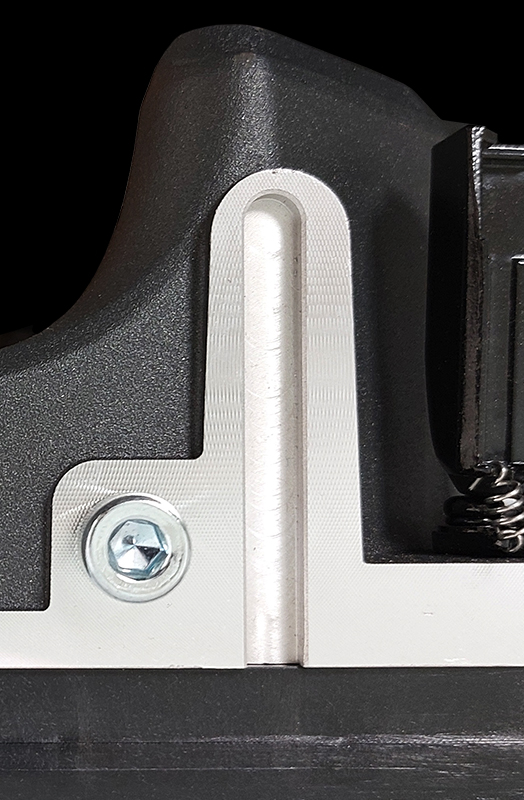

Gone are the days of tightening individual bolts to align the screen. With our new panels, they are 1M tall by .5M wide this reduces the number of cables and cabinets by 50%. The weight is also greatly reduced. Locating pins, locking channels and a simple quick release hand tightening system makes the TOPS AV 2.97P IP panels very easy to array. When hanging, there are bumper bars for truss and it’s as easy as hanging one next to the other and connecting them. Very easy to take apart as well
TOPS AV panels come with safety brackets for safety redundancy.
Power

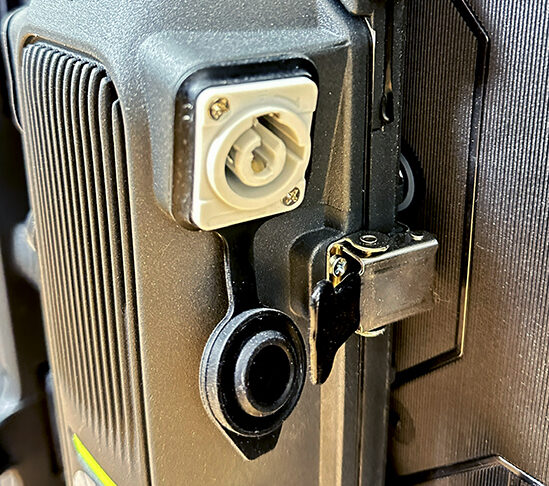

At 108W of power average per panel, 10 panels can be linked with a 20A breaker. The efficiency and brightness of the LED’s give an impressive dynamic display with great colour clarity and definition.
Value
Designed for the Canadian rental market by the Miltimore family, the TOPS AV 2.97p IP screen represents excellent value. With the service and support from the AV technicians and the electronic repair techs, you can rest assured that your investment into a TOPS AV 2.97p IP wall will last for years and years. Designed with the experience and knowledge from electronics to actually setting up screens for the last 3 decades, the TOPS AV 2.97p IP is the screen that will impress your clients and accountants at the same time. The Miltimores have done the work and are very excited to share this great screen for the Canadian rental market.
ULc Approved
Vibrant and bright even in the strongest sunlight!
